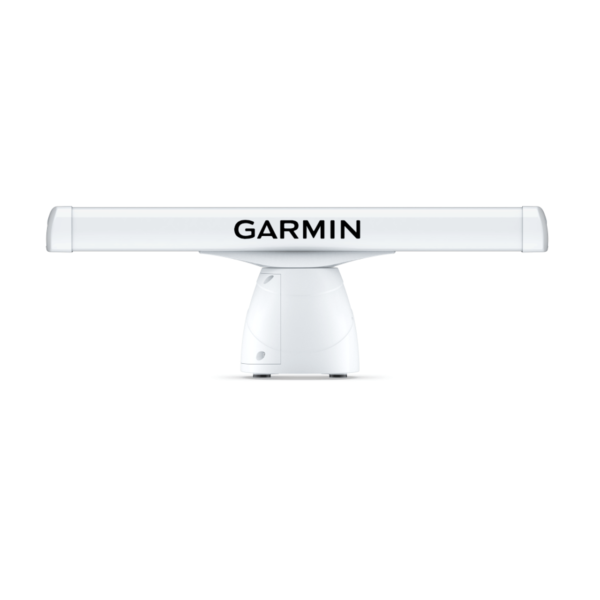

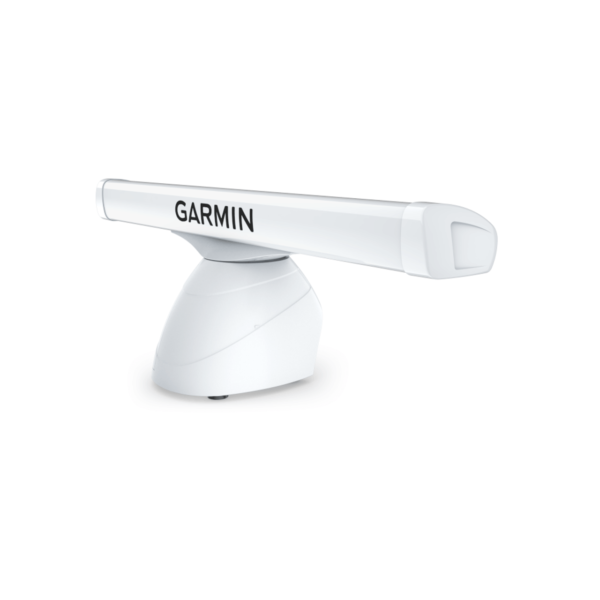

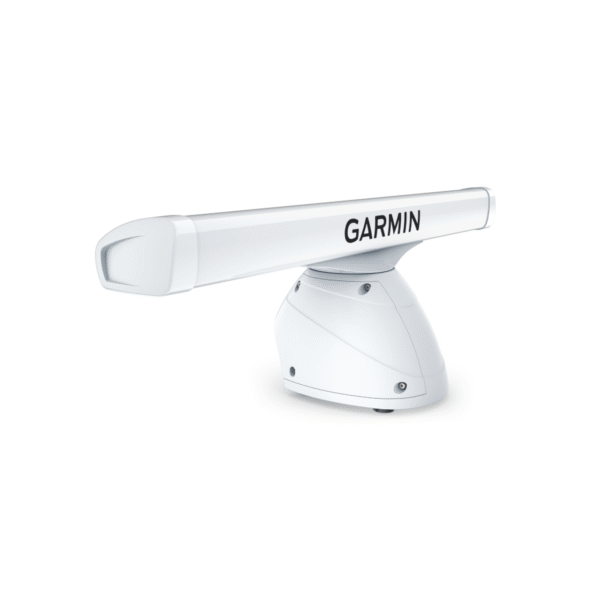

Garmin 12kW GMR xHD3 Open Array Radar & Pedestal

Garmin 12kW GMR xHD3 Open Array Radar & Pedestal

Scan with the Magnetron power of Garmin’s 12 kW open-array radar. Combining high-definition imaging with the latest Garmin platform technology, these robust 4′ and 6′ open-array radars offer superior weather, obstacle and traffic detection for mariners cruising or fishing offshore.

Features:

• Scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets
• Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales
• Rotation speeds of 24 and 48 RPM for fast redraw rates, with max range up to 72 nautical miles on the 12 kW versions
• Historical “trail” of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats
• Single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range
• Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters

Specifications:

• Dimension:
  • 4′ array: 52.2″ x 4.8″ x 6.7″ (1325 x 122 x 170 mm)
  • 6′ array: 76.5″ x 4.8″ x 6.7″ (1938 x 122 x 170 mm)
• Waterproof: IPX6
• Max wind load: 100kt
• Rotation speed: 24 and 48 RPM
• Beam width:
  • 4′ array: 1.8° horizontal, 23° vertical
  • 6′ array: 1.1° horizontal, 23° vertical
• Maximum range: 72 nm
• Minimum range: 20 m
• Radar type: Open-array
• Power input: 10-32V DC
• Power consumption (standby): 18W
• Typical power consumption, transmitting (normal mode): 70W
• Transmit power: 12 kW
• Auto gain: Dynamic
• Marpa target tracking: Yes (requires heading sensor, sold separately)
• Echo trails: True

Included:

• GMR xHD3 12 kW open array radar with 4′ or 6′ antenna (depending on model selected)
• Power cable (15 m/49.21′)
• Network cable (15 m/49.21′)
• Voltage converter
• Mounting hardware kit and template
• Installation instructions
