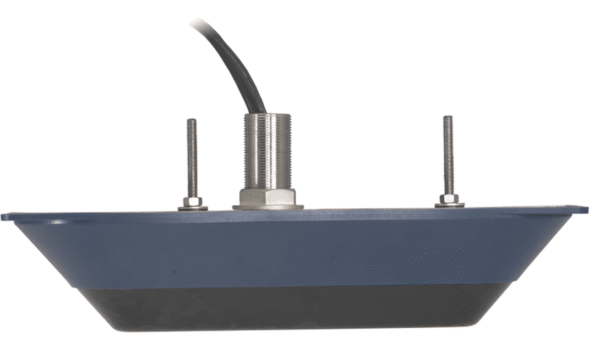

Simrad StructureScan 3D & Med/High CHIRP Transducer

Simrad StructureScan 3D & Med/High CHIRP Transducer

This thru-hull transducer works with the StructureScan® 3D module (sold separately) to create a high resolution, three dimensional view of underwater terrain and fish-holding structure. Immediately see where fish and structure are located in relation to your boat, with a picture-like view you can easily pan, tilt, and rotate for the perfect perspective.

CHIRP and Traditional Sonar
The transducer can also be connected directly to the built-in sounder on your Simrad multifunction display, or to a SonarHub sounder module, to provide CHIRP and traditional sonar capabilities. A combination of Medium and High-frequency CHIRP offers detailed coverage and accurate bottom tracking in shallow to mid-water depths.

Through-Hull Installation
The through-hull transducer can be mounted flat, or with the included fairing block. Stainless steel construction suits a variety of hull materials and designs.

Must Have: StructureScan 3D imaging requires a StructureScan 3D module (sold separately) and Simrad NSS evo3/evo2 or NSO evo3/evo2 multifunction display. CHIRP and traditional sonar features require the CHIRP sonar port on an NSS evo3/evo2 multifunction display or SonarHub sounder module.
